Series 600 Relay Selector

open_in_new Learn More on Our Website

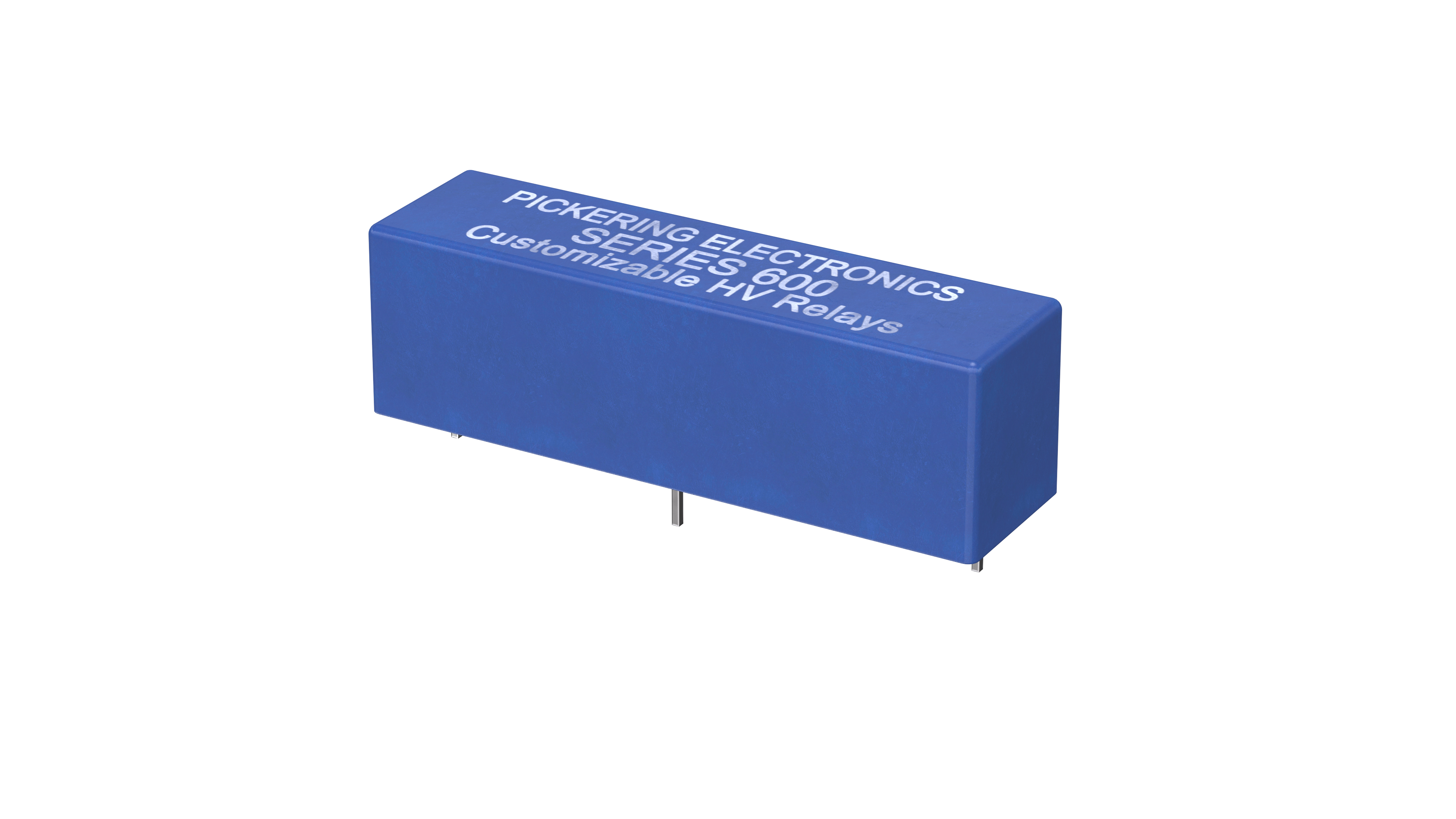

Series 600 Relay Render

Selected Model: 600N-1B12-4DPC1

🔧 Case Type help

Standard (L 50.8mm W 16.0mm H 18.0mm)

Large (L 68.0mm W 19.0mm H 19.8mm)

⚡ Electrostatic Screen help

No Screen With Screen

🔀 Switch Form

Form A - Normally Open

Form A - Normally Open

Form B - Normally Closed

Form B - Normally Closed

Form C - Changeover

Form C - Changeover

🔌 Coil Voltage

5V 12V 24V Custom

⚡ Switch Specification help Max Switching Voltage / Max Stand-off Voltage

🛡️ Coil Suppression help

No Diode

Diode

Zener + Diode

🔌 Connection Type help

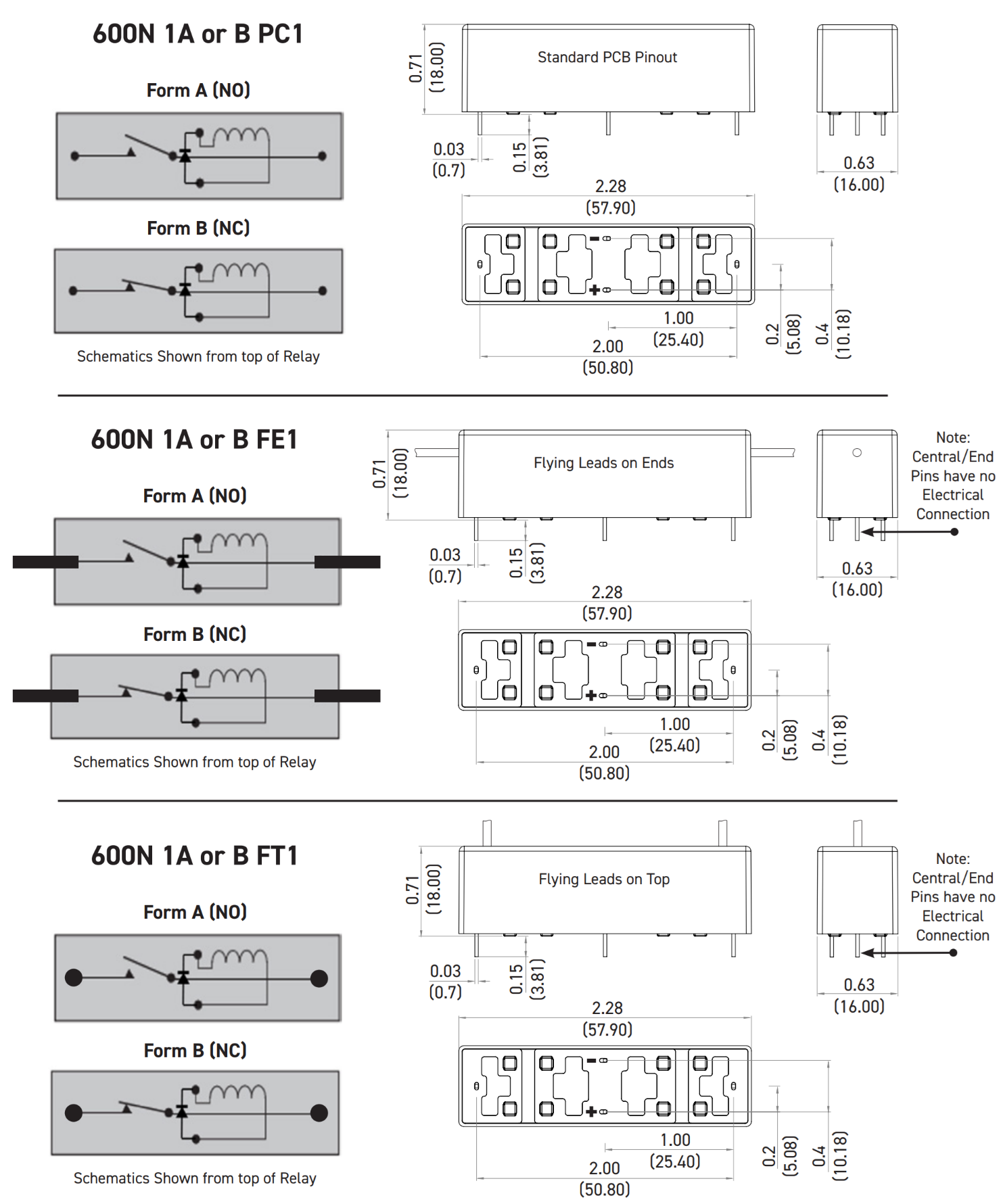

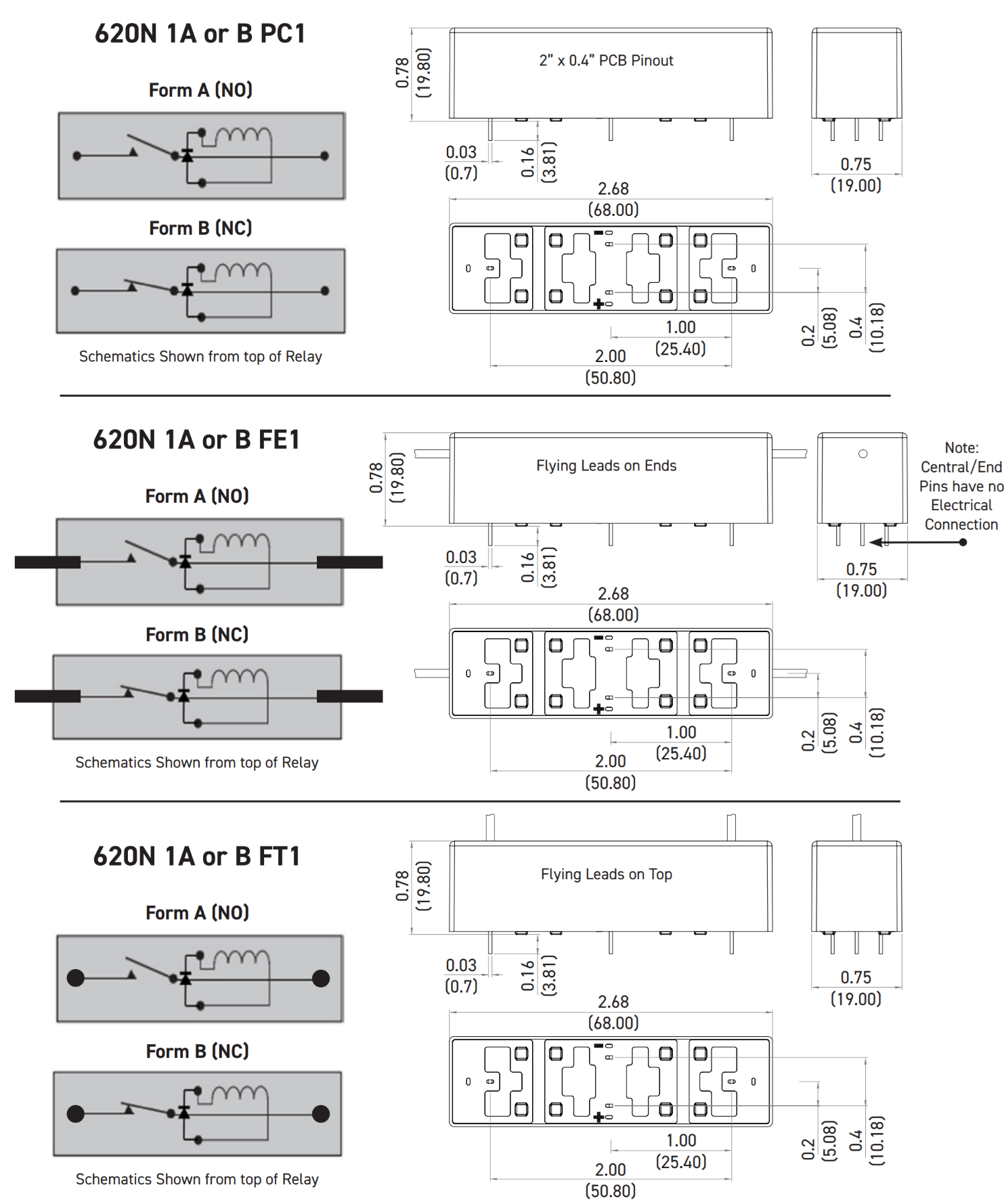

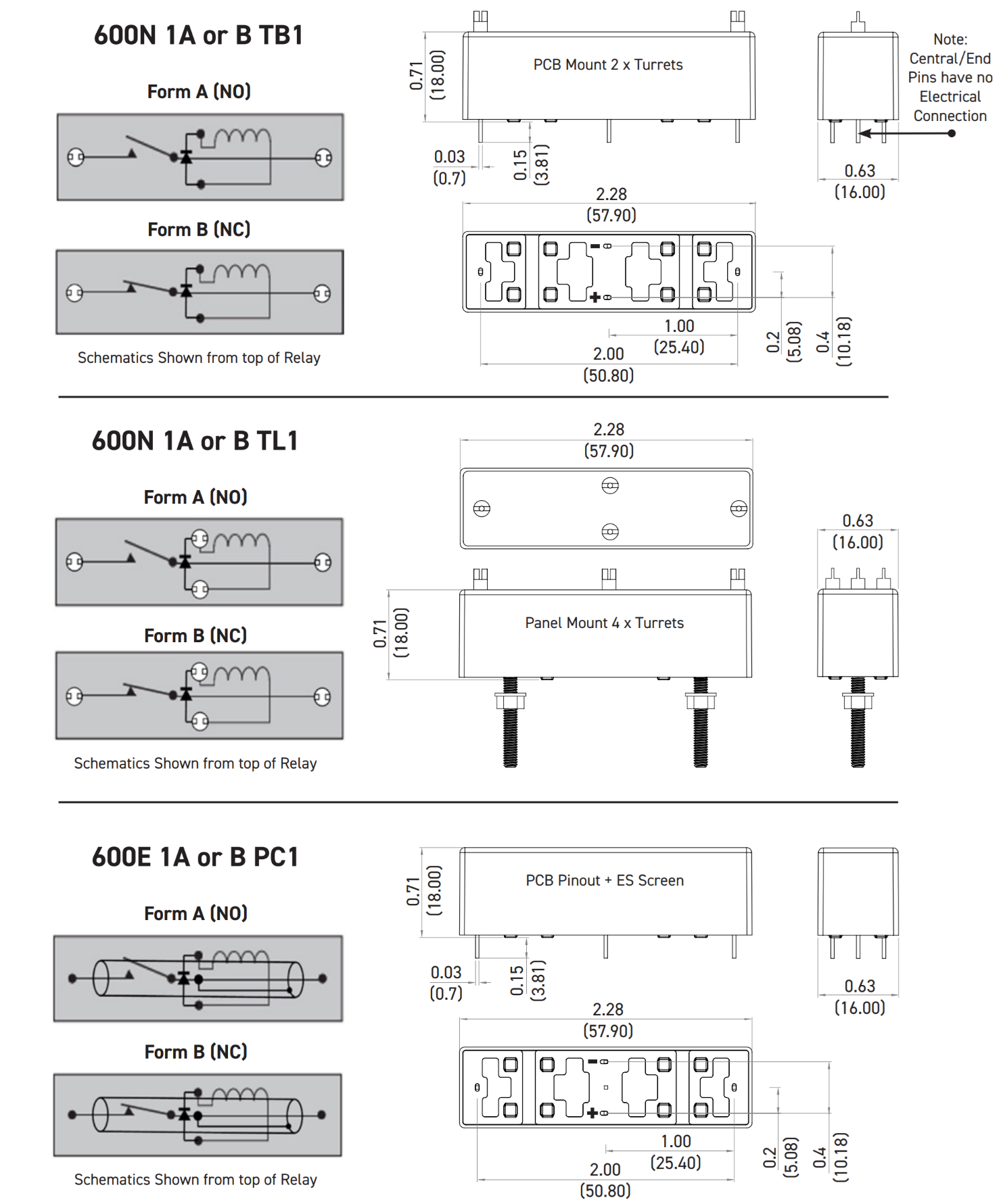

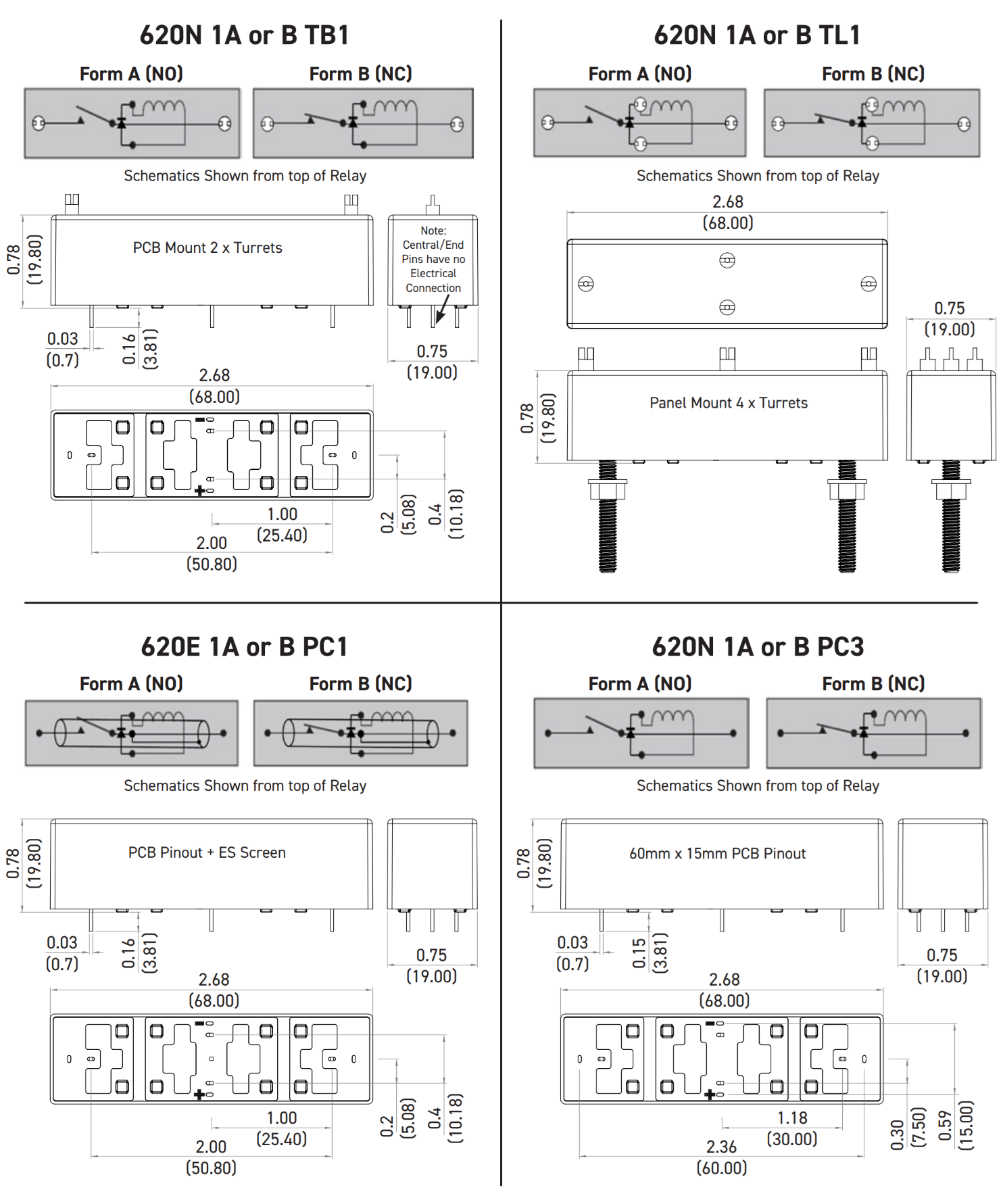

🔌 PCB Pinout 📖 View Layout Reference

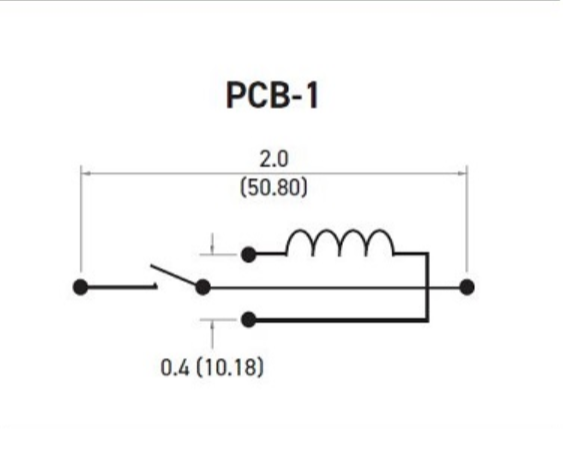

PCB-1 Pinout

PCB-1 Pinout

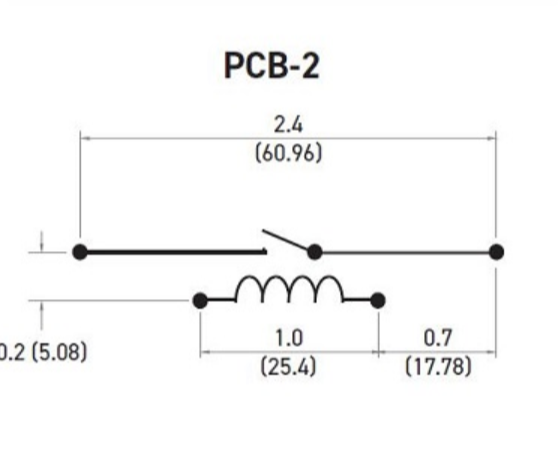

PCB-2 Pinout

PCB-2 Pinout

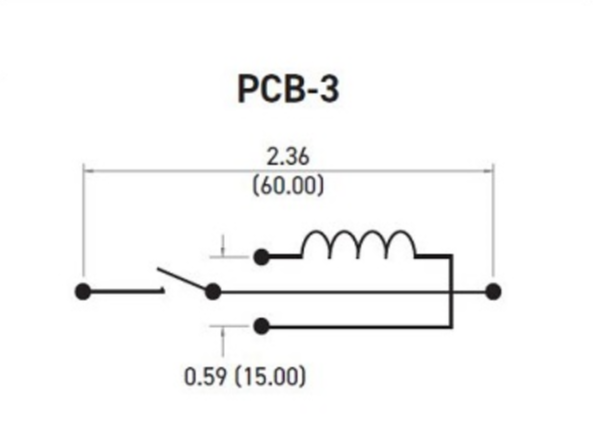

PCB-3 Pinout

PCB-3 Pinout

If your desired pinout is not listed, contact our Relay Experts at techsales@pickeringrelay.com to design a pinout that suits your needs.

📝 Special Requirements help Additional specifications or special requirements
